Reflection Probe

The component is capturing surroundings of the scene to get reflections and to get ambient lighting data.

Contents

1 Overview
2 Real-time mode
3 Properties
4 See also

Overview

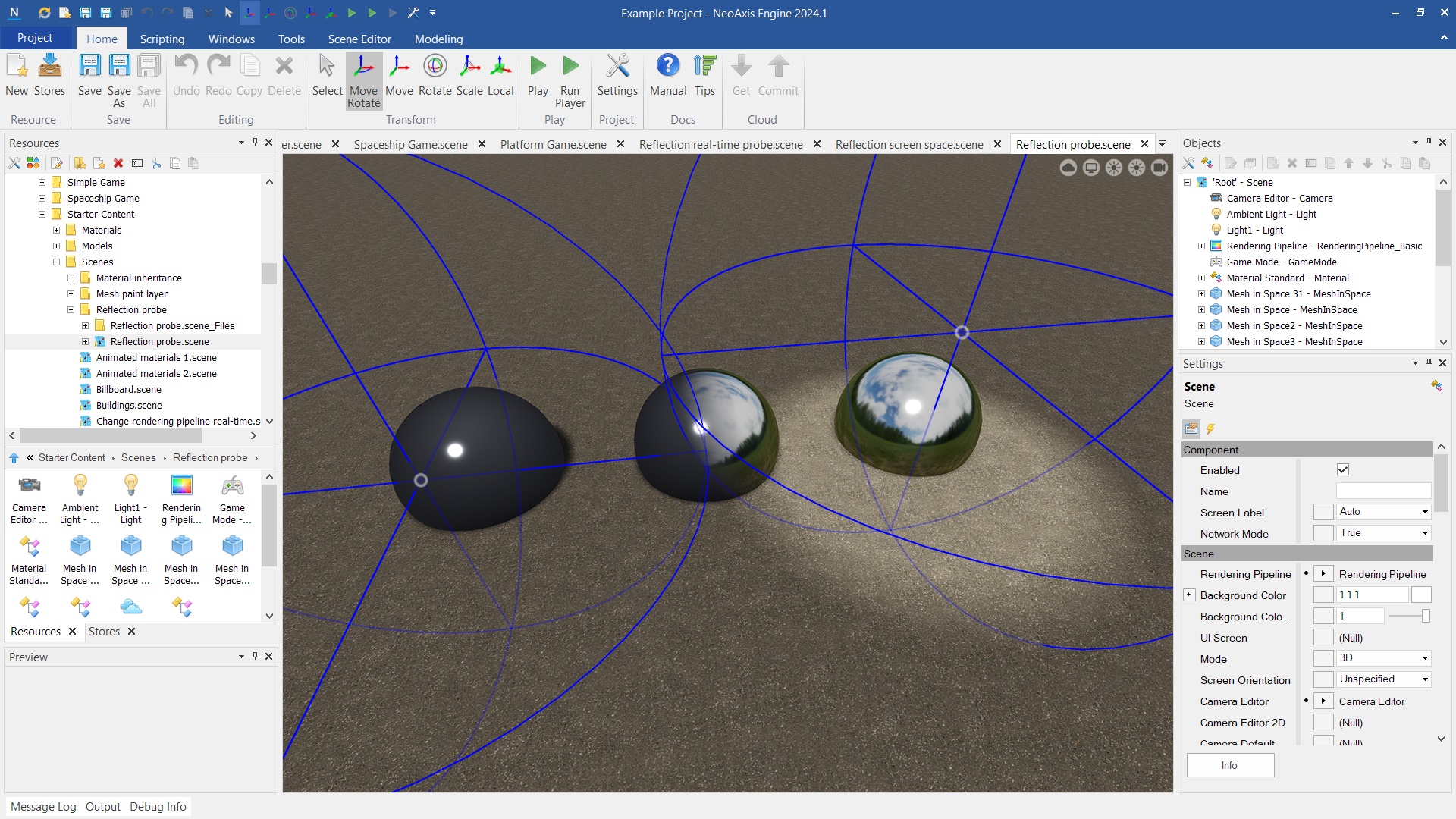

The component internally caches the image to get reflections fast. Reflection probe is a way to get projective reflections. The reflection is precalculated from a selected position in the scene. The component is also can be used to get data for ambient lighting (average environment lighting).

It can be combined with Reflection screen effect.

Real-time mode

The component can work in real-time mode. It also can be configured to update position in the scene to get best results.

Example: Samples\Starter Content\Scenes\Reflection real-time probe.scene.

Properties

Name	Description
Mode	The mode of the reflection probe.
Global	Whether to affect all scene instead of sphere volume.
Cubemap	The cubemap texture of reflection data used by the probe.
Rotation	The horizontal rotation of the cubemap.
Intensity	The factor of the probe effect.
Multiplier	A cubemap color multiplier.
Real Time	Whether to capture and pass the information in real-time.
Resolution	The resolution of the capture.
High Dynamic Range	Whether the high dynamic range is enabled. For Auto mode HDR is disabled on limited devices (mobile).
Use Render Targets	Enables using additional render targets during rendering the frame.
Deferred Shading	Enables the deferred shading. Limited devices (mobile) are not support deferred shading.
Shadows	Whether to visualize shadows.
Transparent Objects	Whether to visualize transparent objects.
Animated Objects	Whether to visualize meshes with skeleton animation.
Light Max Count	The max amount of light sources to draw.
Light Masks	Whether to prepare and apply light masks.
LODScale	The distance multiplier when determining the level of detail.
Near Clip Plane	The minimum distance of the reflection probe.
Far Clip Plane	The maximum distance of the reflection probe.
Render Sky	Whether to render sky of the scene.
Blur Factor	The amount of blur applied.
Affect Lighting Mip Offset	The mipmap offset when fetching blurred reflection data to calculate ambient environment lighting.
Position Depending Camera	Whether to position of the object in the scene by tracking camera position.
